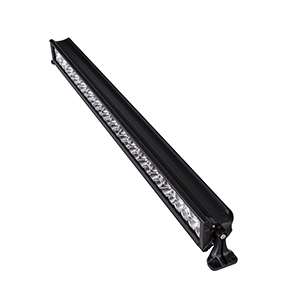

HEISE Triple Row LED Light Bar - 40"

Triple Row LED Light Bar - 40"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 240W (80–3W OSRAM LEDs)
• Raw Lumens: 19200
• LUX @ 10M: 5500
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Hole Dimensions:

• Brackets turned outward – 43.50"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 3.50"
• Depth of Light Bar Itself: 3.25"
• Length of Bar w/o Mounting Brackets: 40.75"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 15 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
