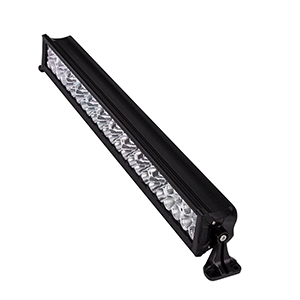

HEISE Triple Row LED Light Bar - 30"
HEISE LED Lighting Systems

HEISE Triple Row LED Light Bar - 30"

review
0
0
5
Your Price: $255.22
Retail Price:$619.99
You Save:$364.77(59%)
Out of Stock. 0 Available
UPC Barcode:
Part Number:HE-TR30

Triple Row LED Light Bar - 30"

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 180W (60–3W OSRAM LEDs)
  • Raw Lumens: 14400
  • LUX @ 10M: 4180
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material:
  • Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Hole Dimensions:
  • Brackets turned outward – 33.625"
  • Mounting Bolt Drill – .25"
    • of Light Bar Itself: 3.50"
  • Height Depth of Light Bar Itself: 3.25"
  • Length of Bar w/o Mounting Brackets: 31"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: 10.3 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity
