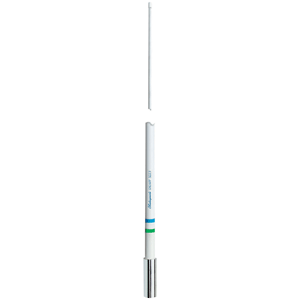

Shakespeare 5223-XT 8' CB Antenna

0 Review(s)

| Questions about this item? Be the first to ask here.

Your Price: $92.84

Retail Price:$242.95

You Save:$150.11(62%)

Out of Stock. 0 Available

UPC Barcode:719441200039

Part Number:5223-XT

Description
Customer Reviews

Shakespeare Galaxy 5223-XT CB
8' CB Unity Gain
Continuous-load, end-fed 1/2 wave

A tuneable, easily installed CB antenna for top performance in demanding situations. Connector is suppled but not installed, so only a 3/8" hole is required for passage of the cable. Coax length can be altered on this antenna.

Stainless steel ferrule with standard 1"-14 thread
Includes 20' RG-8/X cable, which can be cut to size, and a PL-259 connector
Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a 410-R Mounting Kit and a Shakespeare Style 5228 Extension Mast to form a 16' antenna system
One section
Twin to: Galaxy Style 5225-XT VHF
Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:	27 MHz Citizens Band
Bandwidth:	440 Khz within 22.0:1 VSWR
SWR:	1.5:1 or less at Channel 19
Impedance:	50 ohms
Max Input (Watts):	25 Watts
DC Ground:	YES
Height (feet):	8'
Polarization:	Vertical
