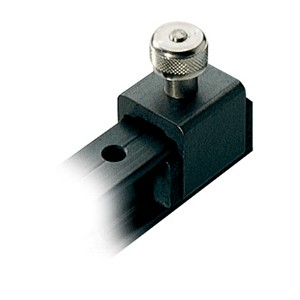

Ronstan Series 19 I-Beam Car - Adjustable Track Stop - Spring Loaded - 25mm (1')

Ronstan Series 19 I-Beam Car - Adjustable Track Stop - Spring Loaded - 25mm (1")

0 Review(s)

| Questions about this item? Be the first to ask here.

Your Price: $36.73

Retail Price:$50.53

You Save:$13.80(27%)

Out of Stock. 0 Available

UPC Barcode:9316800117093

Part Number:RC61983

Description
Customer Reviews

Series 19 I-Beam Car - Adjustable Track Stop - Spring Loaded - 25mm(1")

Track Fastenings: To suit 5mm(3/16") countersunk fasteners at 100mm(3-15/16") centres.

Stop Holes: - 50mm (1-31/32") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners

Minimum Curve Radius

For 51mm(2") car Min horizontal 'A' curve radius = 400mm (15-3/4"). Min horizontal 'B' curve radius = 400mm (15-3/4").
For 86mm (3-3/8") car Min horizontal 'A' curve radius = 1200mm (47-1/4"). Min horizontal 'B' curve radius = not suitable.
For 105mm (4-3/16") car Min horizontal 'A' curve radius = 400mm (15-3/4"). Min horizontal 'B' curve radius = not suitable.

Applications:
- Mainsheet and self-tacking jib travellers on dinghies and catamarans
- Mainsheet systems on boats to 9M (28')
Materials:
Stainless body & plunger
