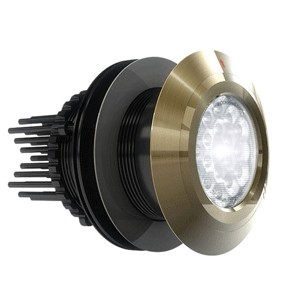

OceanLED 2010XFM Pro Series HD Gen2 LED Underwater Lighting - Ultra White

Pro Series XFM HD Gen2

XFM models, or Xchangeable Flush Mounts, are just that - they're
exchangeable without hauling should servicing ever be needed. Their
exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.

At 7,000-fixture lumen brightness the 2010XFM HD Gen2 model is 67%
brighter than its predecessor by exploiting the next generation of High
Definition LEDs from Cree.

Suitable for all hull types up to and over 65' (20m) using 2-6 lights with
spacing of 3-5' (1-1.5m) - for metal hulls, add the Delrin Isolation Sleeve
accessory. Deutsch plug-and-play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium glass lens. Three super bright LED color options.

For an even brighter light choose 3010XFM HD Gen2. For a light with a smaller hole cut-out better suited for transom mount applications choose 2010TH. For a light with color-change capabilities choose from our Colours models.

• 12/24vDC (AC Upgrade Available)

• 40,000+ Hour Life

• Tritonium™ Marine Growth Protection

• Plug & Play

• Aluminium Bronze AB2

• Factory Sealed

• Reverse Polarity Protected

Mounting Recommendations:
Boat Size:up to 65' (20M)
Transom Spacing:3-5' (1.0-1.5M)
Transom Quantity: 2-6
Hull Spacing:3-6' (1.0-1.8M)
Installation Depth (to top of fixture): 8-10" (200-250mm)

Technical
Light Output Equivalent To: 250W HID Metal Halides
Fixture Lumens (total light output from a finished fixture): 7,000
Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 5.8A / 24VDC 2.9A
Current/Amp Draw (AC): 110VAC 50/60HZ 0.76 / 240VAC 50/60HZ 0.35A
