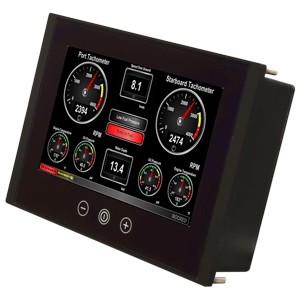

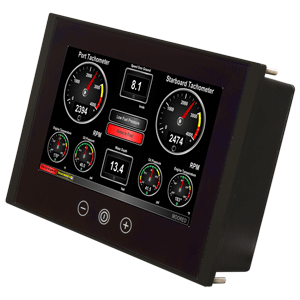

Maretron TSM800C 8" Vessel Monitoring & Control Touchscreen (NMEA2000 Direct Connection)

TSM800C 8"Vessel Monitoring and Control Touchscreen

The TSM800C is an 8" dedicated touchscreen that includes Maretron's N2KView® vessel monitoring and control software. The N2KView® software allows you to configure as many favorite screens as you want with exactly the information you want to see. The TSM800C provides an extremely simple touch interface for monitoring and controlling critical systems from anywhere on the vessel.

The TSM800C is ruggedized for marine use and includes a solid state disk drive to withstand the pounding associated with waves. And since the TSM800C only dissipates 20 watts, there is no need for internal cooling fans that are noisy and wear out causing electronics to overheat and fail. The TSM800C can be mounted outside given the high bright screen and waterproof front.

As an alternative to controlling the TSM800C through the touch screen, the TSM800C includes two USB ports for connecting keyboards, mice, or trackballs. The TSM800C also has an Ethernet port for connecting Internet Protocol (IP) cameras for viewing within the N2KView® software. Lastly, the TSM800C contains two completely isolated CAN bus connectors (M12) for easy connection to single or redundant NMEA 2000® networks.
