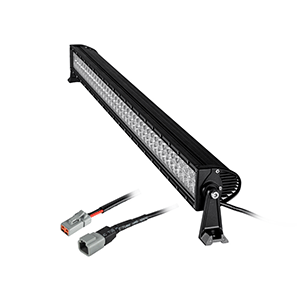

HEISE Dual Row LED Light Bar - 42"
HEISE LED Lighting Systems

HEISE Dual Row LED Light Bar - 42"

review
0
0
5
Your Price: $246.87
Retail Price:$549.99
You Save:$303.12(55%)
Out of Stock. 0 Available
UPC Barcode:
Part Number:HE-DR42

Dual Row LED Light Bar - 42"

SPECS

  • Input Voltage: 10-30V DC
  • Power Consumption: 240W
  • (80-3W CREE LEDs)
  • Raw Lumens: 19200
  • LUX @ 10M: 1100
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: Black
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Length of Bar without Mounting Brackets: 42"
  • Hole Dimensions:
  • Brackets turned inward - 41.50"
  • Brackets turned outward - 43.75"
  • Mounting Bolt Drill - .25"
  • Height of Light Bar Itself: 3"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -40°C to +60°C
  • Current Consumption: 12 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity
