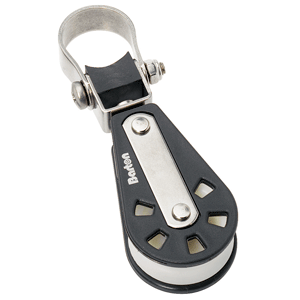

Barton Marine Size 2 - Single - Stanchion Lead Block

Series 2 35mm Block - Stanchion Lead

Stanchion Lead
Designed for use on25mm Ø tubes, with a swivelling action with up-down movement allowing for a fair lead on control lines.

A strong, lightweight range of blocks for use on dinghies and dayboats or as lead blocks on larger boats.
A comprehensive range of multiple sheave options, together with fiddles and cam cleat blocks, allow powerful, lightweight tackles to be achieved

Plain bearing blocks
Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Length:110mm(4.33")
Sheave Size:
Single: 35mm x 12mm (1-3/8" x 15/32")
Fiddle: 30/45mm x 12mm (1-3/16" /1-3/4 x 15/32")
SWL: 370kg (815lbs)
Max Rope Diameter: 8mm (5/16")
Break Load:740kg (1,630lbs)
